Opis
Same specifications as HTX3057B2 only turbine flange is replaced with 2.25″ V-band connection.

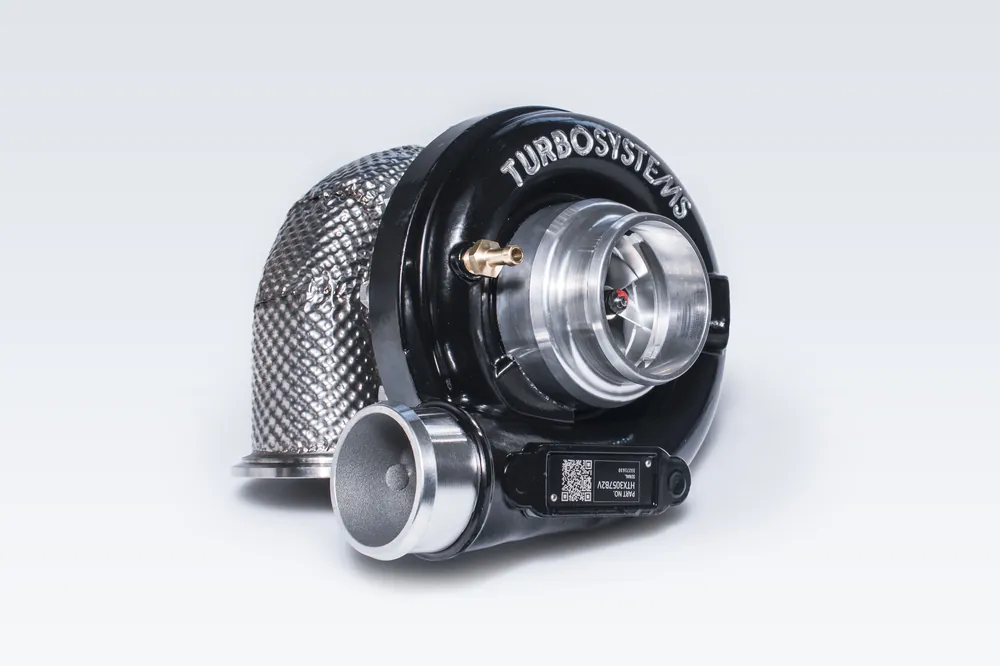

High performance turbocharger designed for heavy loads and high temperature. Two compressor side air outlet choices – 90° and straight for easier connection. Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.
- Power range:400-500+ HP;
This turbocharger comes with 2 V-band sets (for turbine flange and exhaust).
Compressor side:
- Ported shroud compressor housing;
- Compressor wheel:in-house made, reinforced 57/71 mm 9+0 blades machined from the solid aluminium;
- Intake:
- Straight compressor housing – 63mm;
- (2,5″)Compressor housing with 90° elbow – 76mm (3″);
- Air outlet:51mm (2″);
Core:
- Bearings: dual ceramic ball bearings;
- Cooling: water cooling with 2 x M14x1.5 ports;
- Lubrication: AN4 oil inlet with integrated oil restrictor;
Turbine side:
- Housing:single scroll , 10cm2 AR: 0.73;
- Turbine wheel:custom design 60/55mm 9 blades
- Flange:25″V-band single scroll;
- Exhaust connection:3″ V-band clamp;
Included Oil drain flange
