Opis

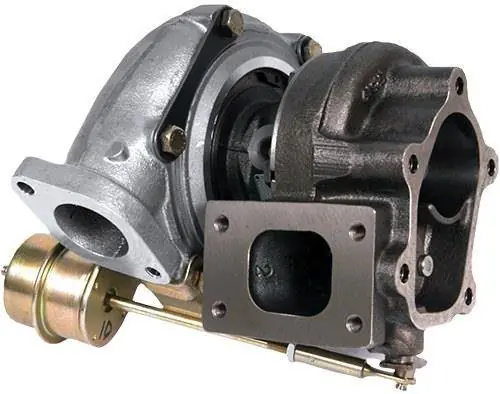

Turbosprężarki Garrett charakteryzują się najwyższą wydajnością i niezawodnością, popartą wieloletnim doświadczeniem.
Zastosowanie :
- Moc: 250 – 360HP
- Pojemność: 1. 8L – 3. 0L
Features:
ORIGINAL GT SERIES AERODYNAMICS
INTERNALLY WASTEGATED TURBINE HOUSING
SOLD AS A COMPLETE TURBO (INCLUDES TURBINE KIT & ACTUATOR)
BALL BEARING CONFIGURATION WITH WATER COOLED CHRA
V-BAND TURBINE HOUSING OPTIONS
BOLT-ON UPGRADE FOR NISSAN RB26DETT
Turbina występuje w poniżej wylistowanych konfiguracjach:
| Turbo Reference Data | Compressor | Turbine | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Turbo PN | CHRA PN | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | A/R |
| 836026-5005S | 835998-0006 | 47mm | 60mm | 62 | 0. 60 | 54mm | 47mm | 76 | 0. 64 |
| Notes: | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | Trim | ||
| Additional Turbine Housing Options (Additional housings are not directly interchangeable and will require modifications to the exhaust to be fitted) |
827690-0005 | 0. 64 | T25 | 5-Bolt | Wastegated | N | 76 | ||
| 827690-0004 | 0. 86 | T25 | 5-Bolt | Wastegated | N | 76 | |||
| 827690-0001 | 0. 57 | V-Band | V-Band | Free Float | N | 76 | |||
| 827690-0002 | 0. 72 | V-Band | V-Band | Free Float | N | 76 |
Wymiary:
Wykresy:
