Opis

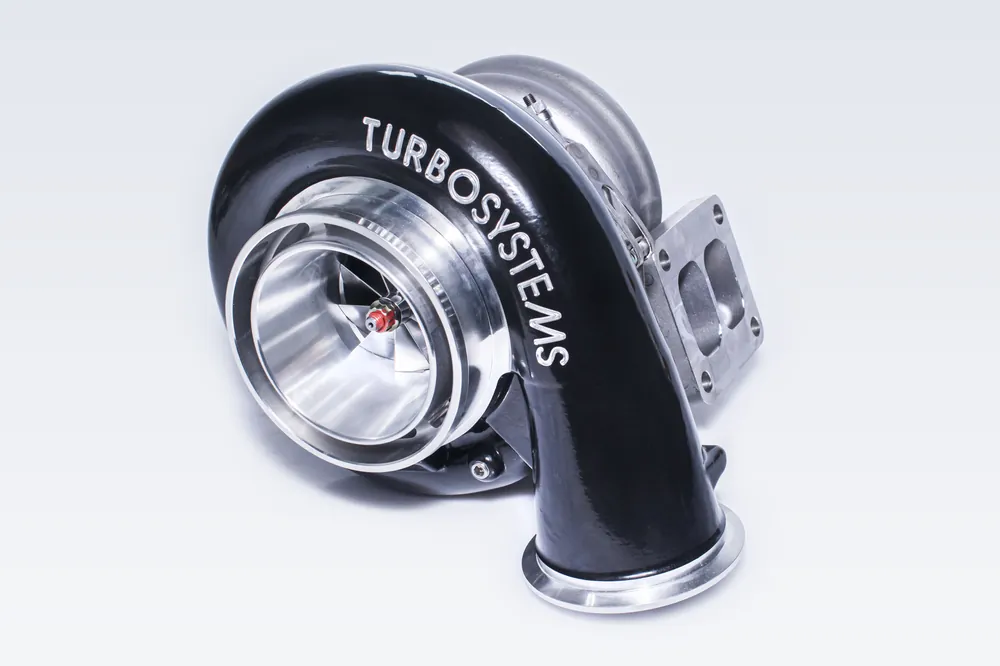

HTX5574B1 specifications
- Power range:850 – 1100 HP;
Compressor side:
- Compressor wheel:10+0 blades reinforced billet aluminium;
- Inducer:74mm, Exducer: 91mm;
- Intake: 129mm (5″);
- Air outlet:102mm (4″);
Core:
- Cooling:Water cooled bearing housing with 2 M16x1.5 ports;
- Bearings:Dual ceramic ball bearings;
Turbine side:
- Housing:twin scroll, AR: 1.45 / 27CM;
- Turbine wheel:9 blades;
- Inducer:82mm;
- Exducer:75mm;
- Flange: T4 twin scroll;
- Exhaust connection:4″ V-band clamp;
Not include gasket
